Overview

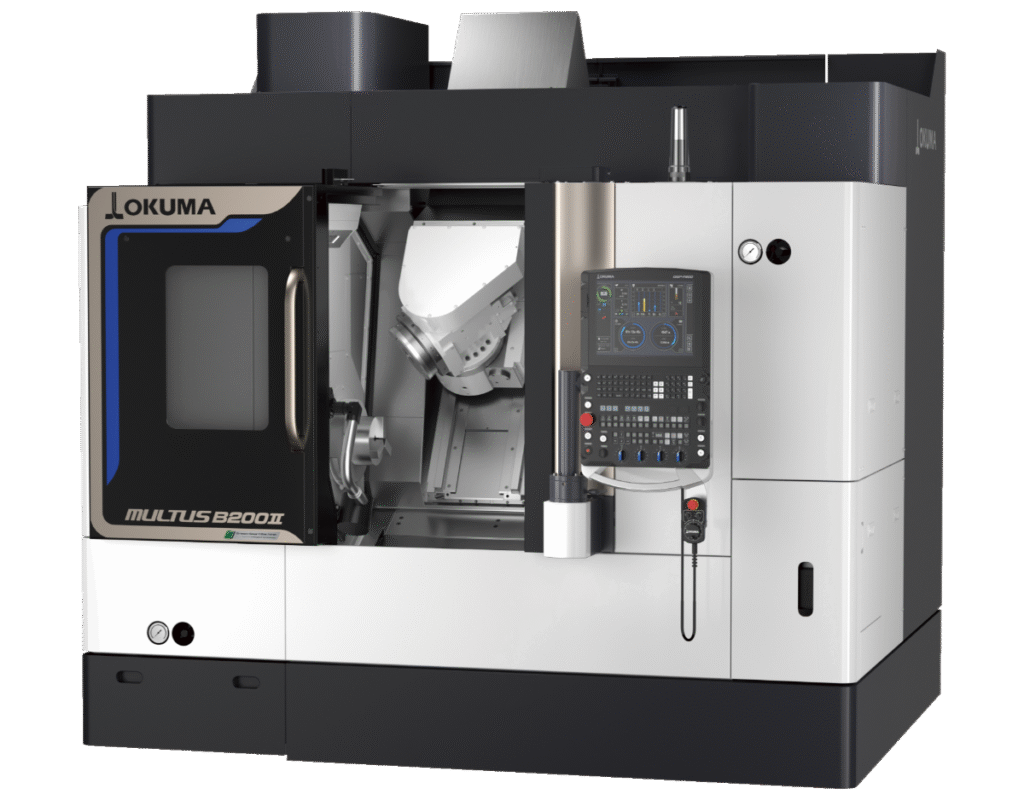

The Okuma MULTUS B200II, equipped with a B-axis head, is the ultimate fusion of turn-mill operations, with lathe, vertical, or horizontal machining center and material-handling operations consolidated into one 6- to 8-inch chuck class machine. This multitasking CNC machine performs process-intensive machining for shorter deliveries while making more effective use of floor space. With fewer setups, work in process is drastically reduced and machine utilization is greatly increased.
The MULTUS B200II has a 225° B-axis range with 12,000 rpm H1-milling spindle (opt. 20,000 rpm) with dual function (L/M). The H-1 dual function spindle head utilizes CAPTO-C6 tooling and has a 16.2/10.8 hp PREX milling motor spindle. The base offering has 40-tool ATC, with a 60-tool ATC available. The H1-turret has a 0.001-degree B-axis and compound-motion Y-axis for machining flexibility. The main spindle is equipped with a full-contouring C-axis.
- Generous Work Envelope – Unrivaled Flexibility
- OSP-P500S Control – Designed specifically for multitasking machines
- Advanced Multitasking Capability – All in a compact footprint
- Thermo-Friendly Concept – Reliable accuracy regardless of ambient temperature
